Trinity Virtual RF Power Meter Gallery

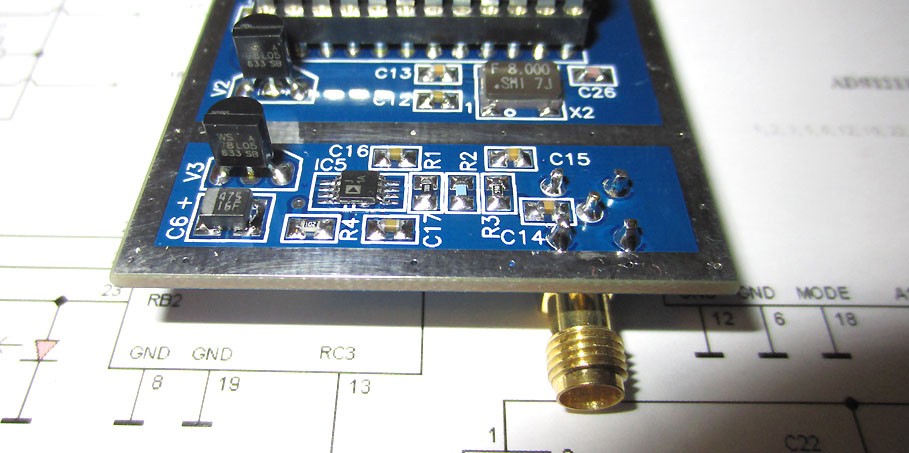

Input front with Log Detector circuit and SMA connector.

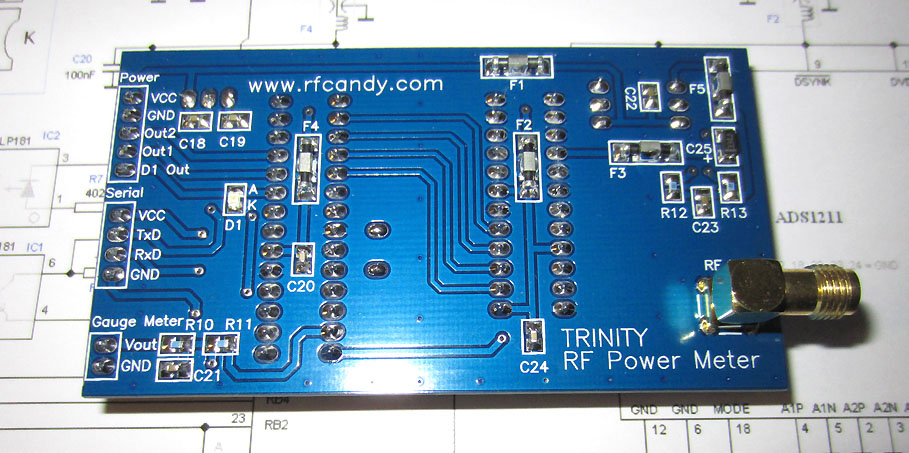

Backside.

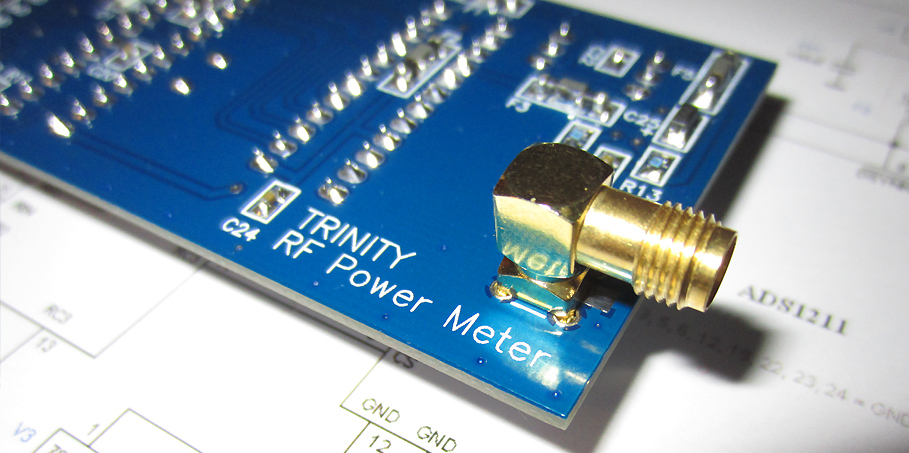

SMA connector input.

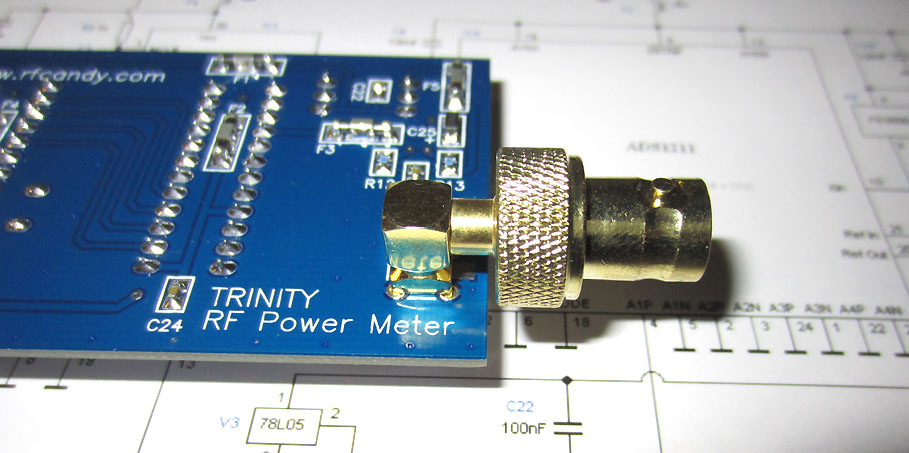

A SMA-to-BNC adaptor connector added to the SMA connector.

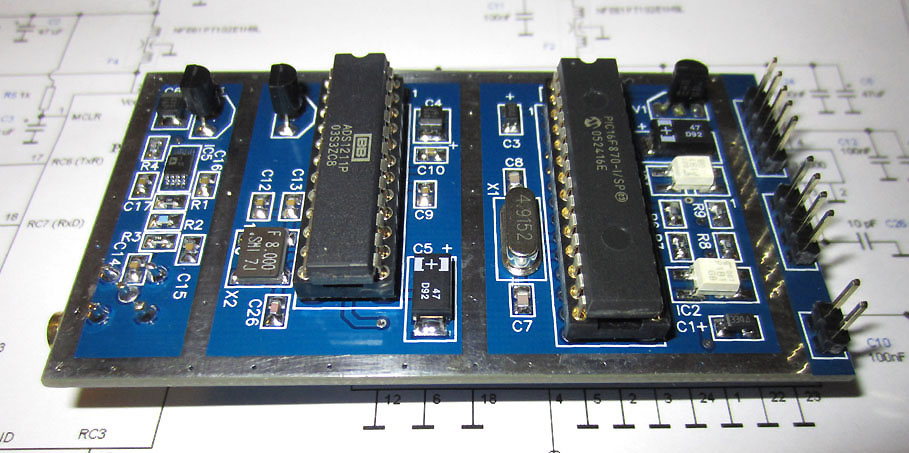

Top side with all parts.

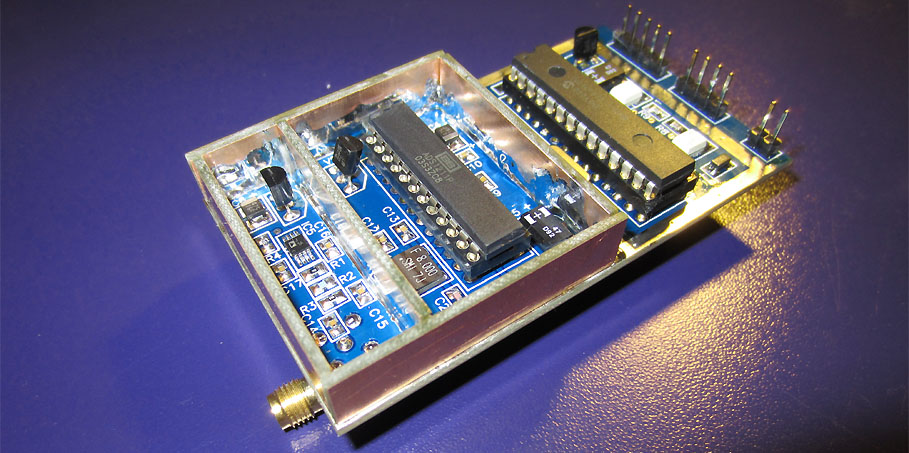

Copper shielding of the input section and the A/D section. Roof will be applied as well.

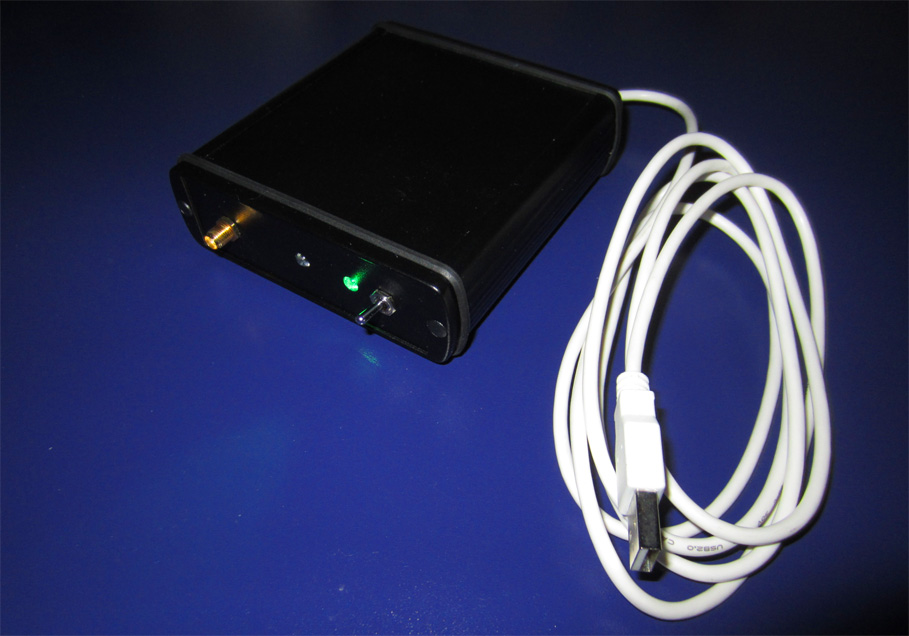

Built into a box.
